GH-38 (2.0 to 3.0 mm)

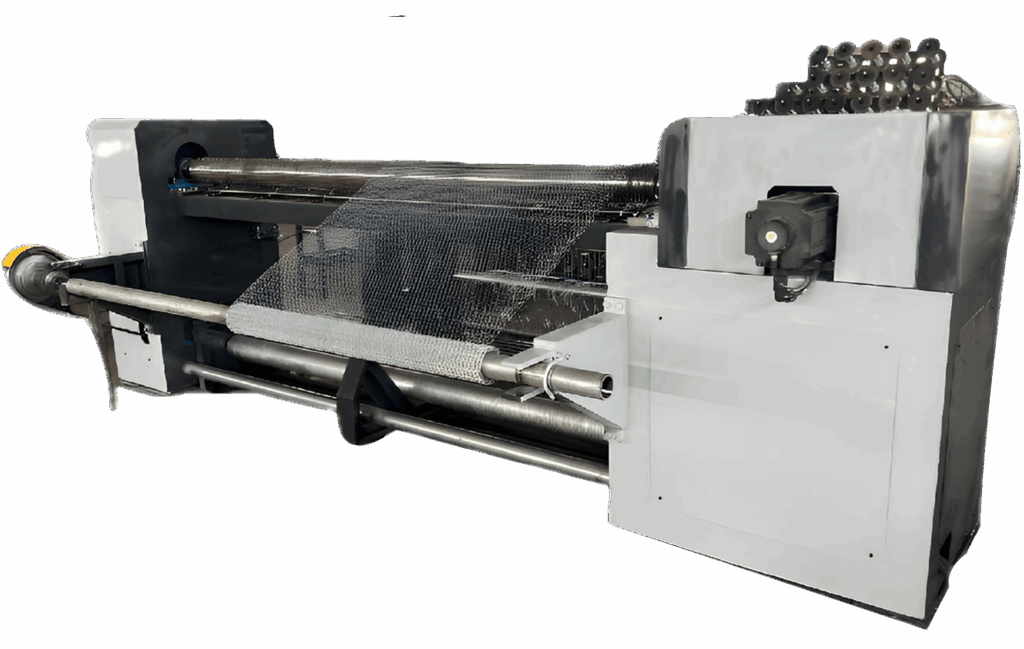

AUTOMATIC HEXAGONAL WIRE MESH MACHINE
(CHICKEN MESH)
The Automatic Hexagonal Wire Mesh Machine is designed to produce high-quality hexagonal wire mesh with fully automatic operation. Both longitudinal and cross wires are fed directly from wire coils, eliminating manual handling and increasing productivity. This machine is ideal for processing low-carbon steel wire or stainless-steel wire to create mesh used in fencing, poultry cages, construction, agriculture, and gabion manufacturing.
With a robust structure, low noise operation, and stable performance, the machine ensures smooth production with minimal downtime. The mesh size and width are adjustable as per customer requirements, making it suitable for multiple applications. Equipped with an electro-magnetic adjustable welding speed system, it provides precise output and easy control. The complete system includes a main welding unit, electrical control cabinet, repair & cutting table, wire straightening & rolling unit, and support rollers for mesh collection.
Model: GH-38
• Wire Size: 2.0 mm to 3.0 mm
• Mesh Size: 80 × 100 / 100 × 200
• Mesh Width: 3.8 Meter
• Number of Twist: 3 & 5
• Wire Material: GI & MS
• Power: 10 kW
• Man Power Required: 2 Person / Shift
• Production Capacity: 60–70 Rows per Minute
• Control Type: VFD
| Model | CH – 20 | GH – 38 | G – 48 (Gabion) |
|---|---|---|---|
| Wire Size | 0.1 to 1.0 MM | 2.0 to 3.0 MM | 2.0 to 4.5 MM |
| Mesh Size | 15 * 17 / 18 * 20 | 80 * 100 / 100 * 200 | 80 * 100 / 100 * 120 |
| Mesh Width | 2 Meter | 3.8 Meter | 4.8 & 5.8 Meter |
| Number Of Twist | 3 & 5 | ||
| Wire Material | GI & MS | ||
| Power | 5 Kw | 10 Kw | 35 Kw |
| Man Power | 2 Person / Shift | 2 Person / Shift | 3 Person / Shift |
| Production Capacity | 70 – 80 Row Per Minute | 60 – 70 Row Per Minute | 50 – 60 Row Per Minute |
| Control Type | VFD | VFD | CNC / VFD |
