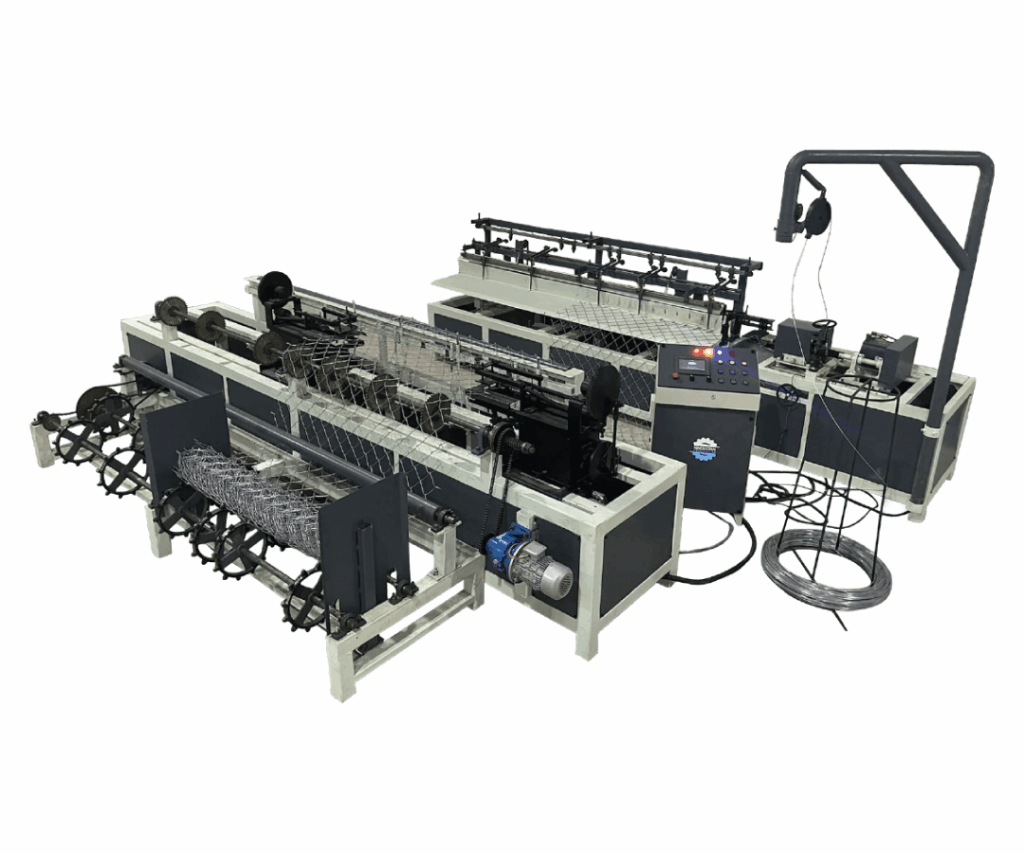

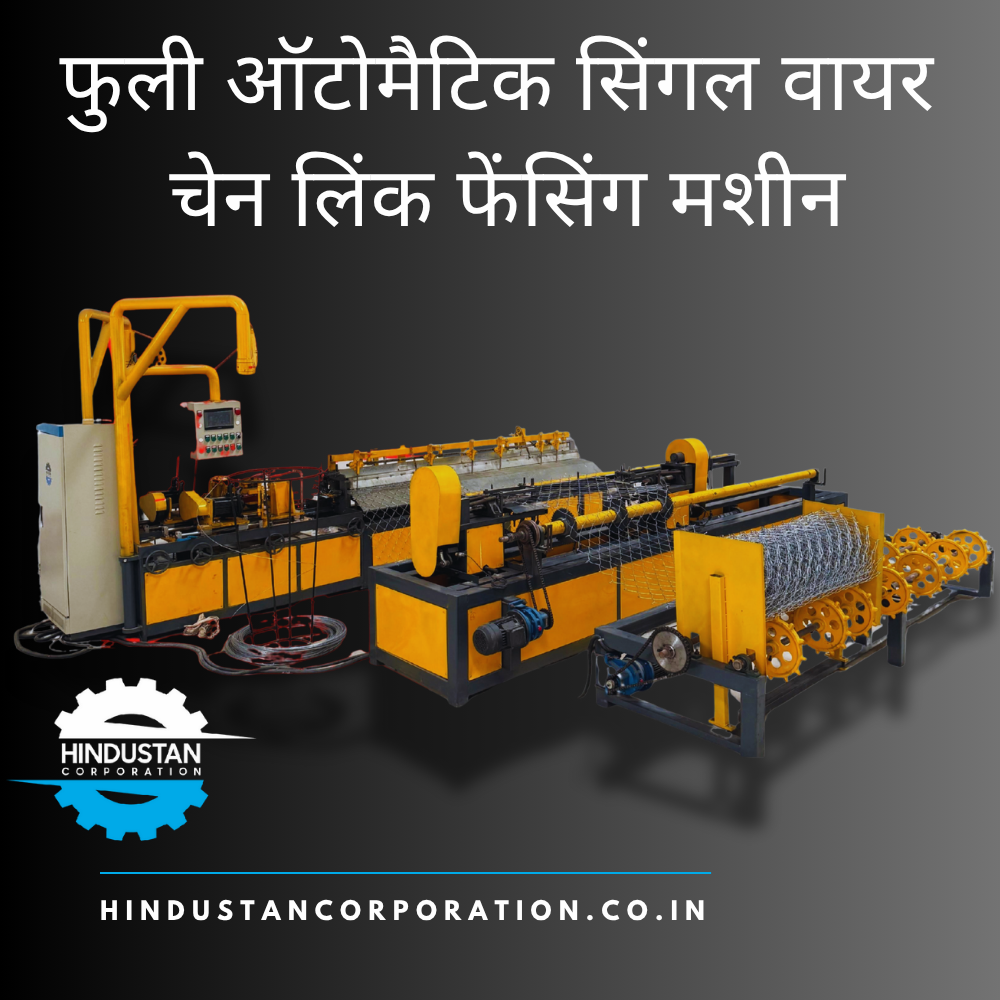

Fully Automatic Single Wire Chain Link Fence Machine

  1. Home
  3. Fully Automatic Single Wire Chain Link Fence Machine

Fully automatic single wire chain link fence machines can produce many different hole size of the mesh with different molds. The machine is controlled by PLC, we can set the length of the fence by PLC. The machine only need one worker for operating.

Whole chain link fence machine line includes: main machine, chain link fence weaving machine, mesh rolling machine, border wire twisted and wind machine, PLC control cabinet, and all related accessories. It could start production directly after installation.

Main Parameters

Row Material wire diameter 1.5mm–4mm (Adjustable)
Mesh opening 25*25mm to -120*120mm (Adjustable)
Max Width 1ft – 3 Meter. ( Adjustable)
Motor Power (Total Motor 7) Servo motor (3.5kw)- 1 set. (SIEMENS)
(1 YEAR WARRANTY))
Induction motor with Gear (0.75kw) – 5 set. (IMPEL)
(1 YEAR GUARANTEE)
Induction Motor with Gear (1.5kw)- 1 set. (IMPEL)
(1 YEAR GUARANTEE)
Total- 12Hp (Loading power 10HP)
Voltage 415v/50HZ
Production capacity 30-100m2/h
8 Gauge/150-160kg/Hour
10 Gauge/120-130kg/Hour
12Gauge/80-100kg/Hour
14 Gauge/60-80kg/Hour
16 Gauge/40-50kg/Hour
Weigh (approx) 2400kg
Overall dimensions(L*W*H) 4.4*1.7×2.5m
PLC controlling, Touch screen And Servo motor and Drive from Siemens, Delta, Schneider
Machine Working area. 20ft*20ft*10ft (W*L*H)
Mesh Border wire locking treatment. Twits EDGE and Bending EDGE

Uses and features:

Designed for a continuous working system for 24 hours.
Single wire input
Six sets mold for free
Long using time for mold
Low tolerance for mold +/-1mm
Wire fencing option up to 3 meters height As Depend on model. (any smaller height size is available)
It works with any Wire thickness between 2 mm and 4.0mm.
Between 25mm-100mm of mesh size wire fencing
Can be used with kinds of galvanized or pvc wire
