Description

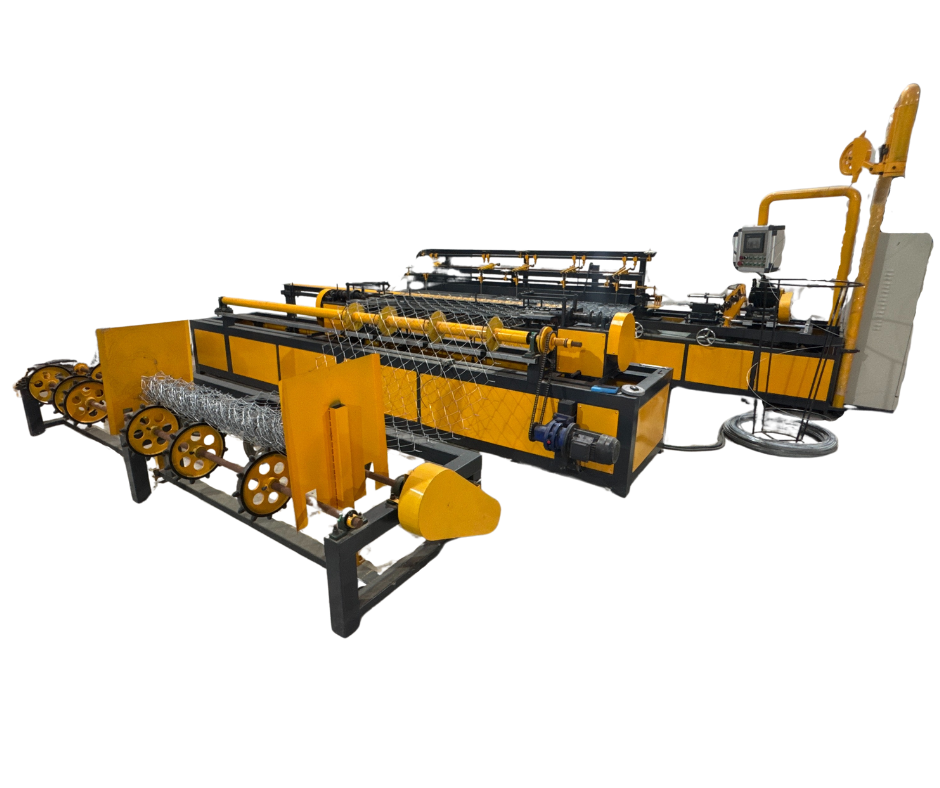

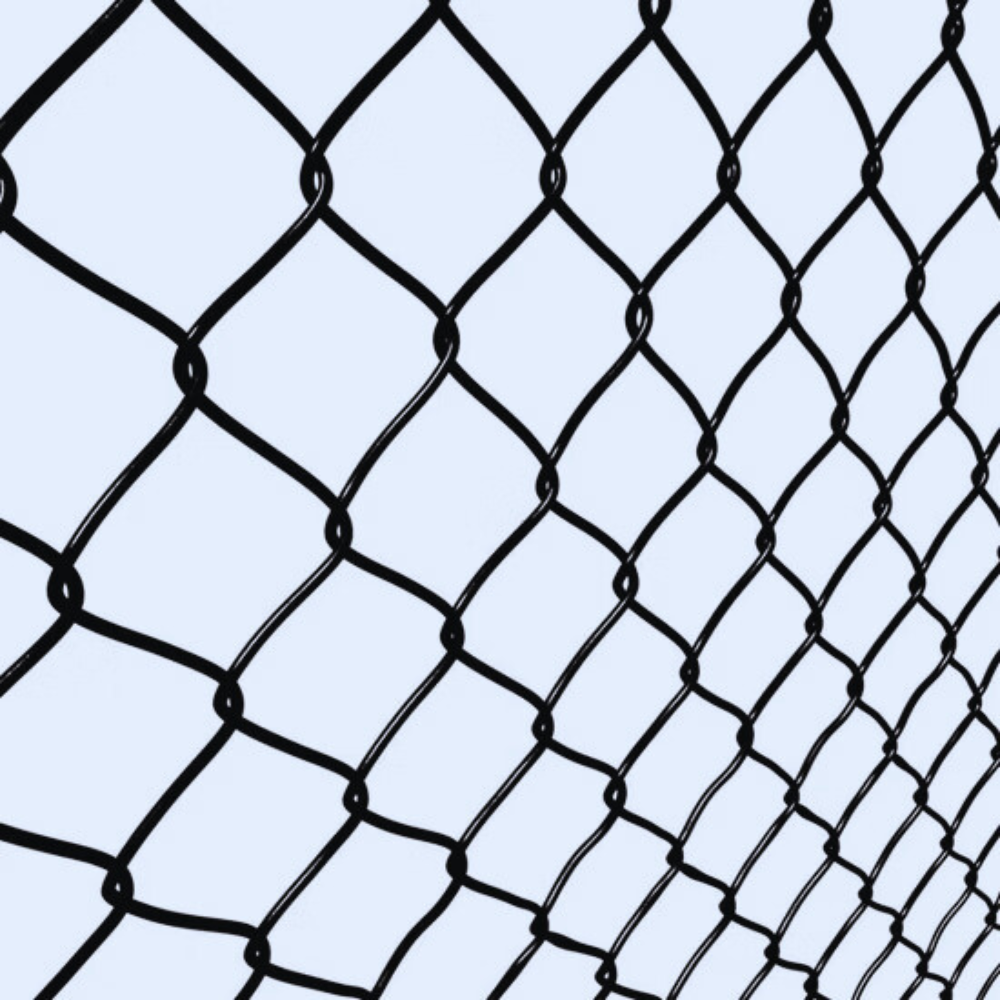

The Fully Automatic Double Wire Chain Link Fencing Machine is engineered to produce high-quality and durable chain link fencing with complete automation. Designed for high-speed production, it uses double wire feeding technology to ensure strong, uniform, and precise mesh output. Both vertical and cross wires are automatically fed, woven, and knuckled or twisted, reducing manual labor and increasing productivity. This machine is ideal for manufacturing fencing used for security boundaries, playgrounds, farms, residential & industrial premises, airports, railways, and sports grounds.
Built with a heavy-duty body, advanced control system, and low-noise operation, the machine ensures continuous production with minimal downtime. Mesh width and mesh size can be easily customized as per customer requirements. The PLC automated system provides user-friendly operation with accurate control of mesh dimensions, speed, and cutting functions. The machine includes automatic wire feeding, mesh weaving, edge knuckling or twisting system, cutting unit, and rolling unit for automatic mesh collection. It delivers stable performance, high efficiency, and long-lasting durability—making it a perfect solution for large-scale fencing production.
Model: F-30S Pro (Single Wire)
• Type: Fully Automatic
• Power: 16 HP / 11.5 kW
• Main Motor Capacity: 5.5 kW / 1 Set
• Main Motor Torque: 35 Nm
• Man Power Required: 1 Operator
• Production Capacity: 120 Kg/Hour (3.3 mm wire)
• Working Area (L × W × H): 20 ft × 20 ft × 9 ft
• Wire Size: 1.6 mm to 4.0 mm (14 SWG to SWG)
• Mesh Size: 25 × 25 mm to 120 × 120 mm
• Mesh Width: 2 meter to 5 meter / 6.5 ft to 16 ft
• Input Power Supply: 415 V / 3 Phase / 50 Hz
• Control System: PLC with HMI
Watch Machine Video
| Model | SF-30S (Single Wire) | F-30S Pro (Single Wire) | F-30D Pro (Double Wire) |
|---|---|---|---|
| Type | Semi-Automatic | Fully Automatic | Fully Automatic |
| Power (HP / kW) | 8 HP / 5.5 kW | 16 HP / 11.5 kW | 22 HP / 16 kW |
| Main Motor Capacity | 5.5 kW / 1 SET | 5.5 kW / 1 SET | 5.5 kW / 2 SET |
| Main Motor Torque | 35 Nm | ||
| Man Power | 1 Operator + 2 Helper | 1 Operator | 1 Operator |
| Production Capacity | 120 Kg / Hour / 3.2 mm | 120 Kg / Hour / 3.3 mm | 200 Kg / Hour / 3.2 mm |
| Working Area (Ft) | 10 × 20 × 9 / W × L × H | 20 × 20 × 9 / W × L × H | 20 × 20 × 9 / W × L × H |
| Wire Size | 1.6 mm to 4.0 mm / 14 SWG to SWG | ||
| Mesh Size | 25 × 25 mm to 120 × 120 mm | ||
| Mesh Width | 2 Meter to 5 Meter / 6.5 Ft to 16 Ft | ||
| Power Supply | 415 V / 3-Phase / 50 Hz | ||
| Controlling System | PLC with HMI | ||
